Industrial Circuit Symbols — USA vs Europe

Reference sheet · schematic symbols

Industrial Circuit Symbols
USA vs Europe

A side-by-side field reference for the symbols you meet on industrial and marine drawings — control panels, PLC I/O, power distribution, machine wiring and shipboard one-line diagrams. Most analogue and semiconductor symbols are harmonised worldwide; the real divergences are the resistor family, the logic gates, and — at sea — the whole earthing philosophy.

USA basisIEEE 315 / ANSI Y32.2
Europe basisIEC 60617
MaritimeIEC 60092 · IEEE 45
Machine wiringNFPA 79 · JIC
01

Governing standards

StandardOrganizationCommon useRegions
IEC 60617 International Electrotechnical Commission (IEC) Electrical schematics, industrial automation, power systems Europe, Asia, international projects
IEEE Std 315 Institute of Electrical & Electronics Engineers (IEEE) Electronics and electrical diagrams North America
ANSI Y32.2 American National Standards Institute (ANSI) Older U.S. drawings (largely replaced by IEEE 315) United States
NFPA 79 National Fire Protection Association (NFPA) Industrial machine wiring & control panels United States
JIC Standards Joint Industrial Council (historical) Legacy industrial control / ladder drawings North America
02

Where the two worlds actually differ

Resistors → shape

U.S. drawings (IEEE 315) keep the classic zig-zag. IEC 60617 uses a plain rectangle. The same rule carries through to rheostats and potentiometers.

Logic gates → body

The U.S. uses distinctive shapes (the D-shaped AND, curved OR). IEC uses a rectangle with a qualifier inside: &, ≥1, =1, 1.

03

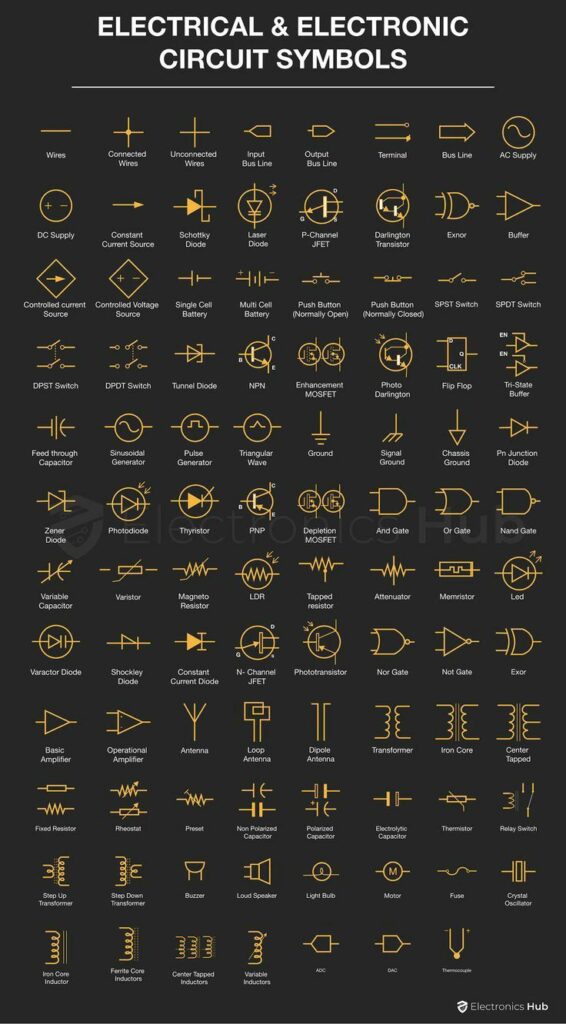

Symbol-by-symbol comparison

differs between standards identical / harmonised
Component · function
USA — ANSI / IEEE
Europe — IEC 60617
Notes
Passive components
Resistor, fixed
current limiting
differs
Flagship difference — U.S. zig-zag vs IEC rectangle.
Rheostat / variable resistor
adjustable resistance
differs
Same zig-zag-vs-box rule, arrow = adjustable.
Potentiometer
3-terminal divider
differs
Wiper arrow taps the resistor body.
Capacitor, non-polarised
energy store / filtering
identical
Identical in both standards.
Capacitor, polarised (electrolytic)
DC smoothing
identical
Identical — curved plate is the negative side.
Inductor / coil
energy store / choke
identical
Identical; IEC also permits a filled rectangle.
Transformer
voltage conversion / isolation
identical
Identical; the two centre lines denote an iron core.
Fuse
over-current protection
identical
Both use a rectangle; older U.S. prints used a broken line.
Power, supply & ground
DC supply
direct-current source
identical
Identical.
AC supply
alternating-current source
identical
Identical.
Battery / cell
stored DC source
identical
Identical.
Earth ground
0 V / protective earth
identical
Identical.
Chassis ground
frame / functional earth
identical
Identical.
Semiconductors
Diode
one-way conduction
identical
Identical.
LED
light-emitting diode
identical
Identical — arrows show emission.
Zener diode
voltage reference / clamp
identical
Identical.
Transistor, NPN (BJT)
switch / amplify
identical
Identical — emitter arrow points out.
Transistor, PNP (BJT)
switch / amplify
identical
Identical — emitter arrow points in.
Switching & control gear
Disconnect / SPST switch
single make-break
identical
Identical.
Changeover / SPDT switch
select one of two
identical
Identical.
Contact, normally open (NO)
closes when energised
identical
Harmonised across IEC, IEEE, NFPA 79 & JIC ladder drawings.
Contact, normally closed (NC)
opens when energised
identical
Slash = the break contact; same in all control standards.
Push-button, NO
momentary start
identical
Identical control symbol.
Push-button, NC
momentary stop
identical
Identical control symbol.
Relay / contactor coil
electromagnetic actuator
identical
Both draw a rectangle; a few U.S. prints use a circle.
Machines & output devices
Motor
rotary drive
identical
M
M
Identical — letter M inside the circle.
Indicator lamp
pilot / status light
identical
Both use the crossed circle; some U.S. prints show a filament loop.
Buzzer / horn
audible signal
identical
Minor stylistic variation only.
Logic gates
AND
output high if all inputs high
differs
&
The other big split — U.S. distinctive shapes vs IEC rectangles.
OR
output high if any input high
differs
≥1
IEC labels the box ≥1 instead of a curved body.
NOT (inverter)
output = inverse of input
differs
1
Bubble = inversion; IEC box carries a 1.
NAND
inverted AND
differs
&
Distinctive AND + bubble vs IEC & box + bubble.
NOR
inverted OR
differs
≥1
Distinctive OR + bubble vs IEC ≥1 box + bubble.
XOR (exclusive-OR)
output high if inputs differ
differs
=1
IEC labels the box =1.
04

Maritime sector — governing standards

Symbol shapes don't change at sea. Ship schematics still draw from IEC 60617 internationally, or IEEE 315 on U.S. and naval drawings — so the resistor and logic-gate split above still applies. What changes is the standards framework, the earthing philosophy, and a set of marine-only one-line elements.
StandardBodyCommon useApplicability
IEC 60092 (series)International Electrotechnical Commission (IEC)Electrical installations in ships & offshore units — system design, protection, equipment, cablesInternational
IEC 60533IECEMC of electrical & electronic installations in shipsInternational
IEC 60945IECBridge / GMDSS navigation & radio equipment — environmental, EMC & safety type testingInternational (SOLAS)
IEC 61162 (series)IEC · NMEADigital data interfaces between nav equipment (NMEA 0183 / 2000 / Ethernet)International
IEC/IEEE 80005IEC & IEEEHigh-voltage shore connection — “cold ironing” / shore powerInternational
IEEE 45 (45.1 / 45.3 / 45.8 …)Institute of Electrical & Electronics Engineers (IEEE)Recommended practice for shipboard electrical installations — merchant, commercial & navalNorth America
IACS UR E (e.g. E10)Int'l Association of Classification Societies (IACS)Unified requirements for electrical / electronic / programmable equipment type testingInternational (class)
Class rules — ABS · DNV · LR · BV · ClassNK · RINAClassification societiesVessel-specific electrical design approval & equipment type approvalInternational / by class
SOLAS Ch. II-1 Part DInternational Maritime Organization (IMO)Treaty requirements for electrical installations & emergency powerInternational (treaty)
46 CFR Subchapter JU.S. Coast Guard (USCG)Electrical regs for U.S.-flag commercial vessels (invokes IEEE 45 & IEC 60092)United States
ABYC E-11American Boat & Yacht Council (ABYC)AC & DC electrical systems on small craft / recreational boatsNorth America
ISO 13297 / ISO 10133International Organization for Standardization (ISO)Small-craft AC (13297) & extra-low-voltage DC (10133) systemsInternational (small craft)
MIL-STD-1399U.S. Department of DefenseNaval shipboard power interface characteristics (e.g. 440 V 60 Hz)U.S. Navy
05

What actually changes on a ship

Insulated (IT) power

The neutral is not bonded to the hull. A single earth fault only raises an alarm — it doesn't trip — so steering gear, fire pumps and navigation keep running. Land industrial is normally an earthed (TN) system.

The hull isn't a wire

Unlike a car chassis, the steel hull must not carry return current — stray-current corrosion, bearing damage, and on tankers an ignition risk. AC is 2- or 3-wire insulated; only HV neutrals earth to the hull, via a resistor.

Type-approved bridge kit

Radar, ECDIS, AIS and GMDSS gear must pass IEC 60945 environmental / EMC / safety testing and interconnect over IEC 61162 (NMEA) — a regime separate from the power side.

Main supply440 V · 3φ · 60 Hzinsulated neutral
Lighting / services230 / 115 Vvia transformer
Control / portable24 V DC& emergency banks
HV gensets3.3 – 11 kVneutral earthed via resistor
ResilienceEmergency switchboard+ emergency generator
At berthShore connectioncold-ironing (IEC/IEEE 80005)
06

Marine one-line diagram symbols

G
Generator
Diesel / shaft genset — G in the circle (a motor is M).
Circuit breaker
Switch marked with a cross × — the ship's main protective device.
Switch-disconnector
Isolator for maintenance; visible open (off-load) break.
Bus-tie breaker
Links two switchboard sections; opened to split the bus.
Shore connection
Plug & socket for shore power / cold-ironing at berth.
Ω
Insulation monitor
Ω device between line & hull — alarms on the first earth fault.
+
Battery bank
24 V emergency / start banks & UPS supplies (IEC 60092-305).
Marine transformer
Steps 440 V down to 230/115 V lighting & services.
Navigation light
Signal-lamp circuit on the dedicated nav-light panel.
Antenna
Radar / VHF / GNSS aerial feeding bridge electronics.
Hull earth bond
Bonding to the hull — not a current-carrying return.
UPS
UPS / inverter
Uninterruptible supply for nav, comms & emergency lighting.
07

Marine electronics — data interfaces

Bridge instruments talk over two dominant buses, both standardised by IEC as the 61162 family. Don't confuse NMEA (marine electronics) with NEMA (U.S. enclosure & electrical ratings) — unrelated bodies.
AttributeNMEA 0183NMEA 2000
IEC referenceIEC 61162-1IEC 61162-3
TopologyOne talker → many listenersMulti-drop bus (shared backbone)
Physical layerRS-422 serial, 2-wire differentialCAN bus (SAE J1939-based)
Data rate4,800 bps (38,400 for AIS)250 kbps
WiringNo universal colour code; TX/RX pairsPowered backbone + drop cables, keyed connectors
Best forSimple / legacy point linksModern plug-and-play multi-device networks
Newer IEC 61162-450 / -460 ("Lightweight Ethernet") carry NMEA data over shipboard IP networks, with NMEA OneNet as the marine-Ethernet successor — increasingly the backbone for integrated bridge and cyber-secure systems.
SheetElectrical & Electronic Symbols — Industrial & Marine
StandardsIEC 60617 · IEEE 315 · IEC 60092 · IEEE 45
RevB
Sheet1 / 1

Symbols are drawn to convention for identification, not to a specific manufacturer's drafting scale. Contact orientation (NO/NC), coil designations and terminal numbering should always follow the governing drawing standard and the equipment schematic on any real installation. For marine work, the applicable classification-society rules, flag-state regulations and SOLAS requirements take precedence over any general reference.
